Secondary Shredders

The right size, every time. Finer, cleaner material ready for recovery.

Secondary shredders, such as raspers, take material from the primary shredder and liberate it into a finer, more consistent product. Built-in screening controls the output size: material stays in the cutting chamber until it’s small enough to pass through, so you get the size you need rather than just a smaller one.

Liberating material frees valuable fractions for recovery and gives you a cleaner product that’s ready for further processing or direct resale. A controlled output size also helps downstream equipment run more efficiently, and cleaner recovered material sells for a better price. Eilbeck’s secondary shredders work alongside our primary range, so you can source your whole line from the one supplier.

Raspers

Once the primary shredders have done the heavy lifting, Raspers cut and chop material down further into smaller, consistent pieces and liberate material for recovery, making it ready for screening, further processing, or resale. Built for the toughest feedstock including shredded passenger and truck tyres, TDF and RDF, wire-free rubber chips, e-scrap, mixed plastics, cables, and commercial waste.

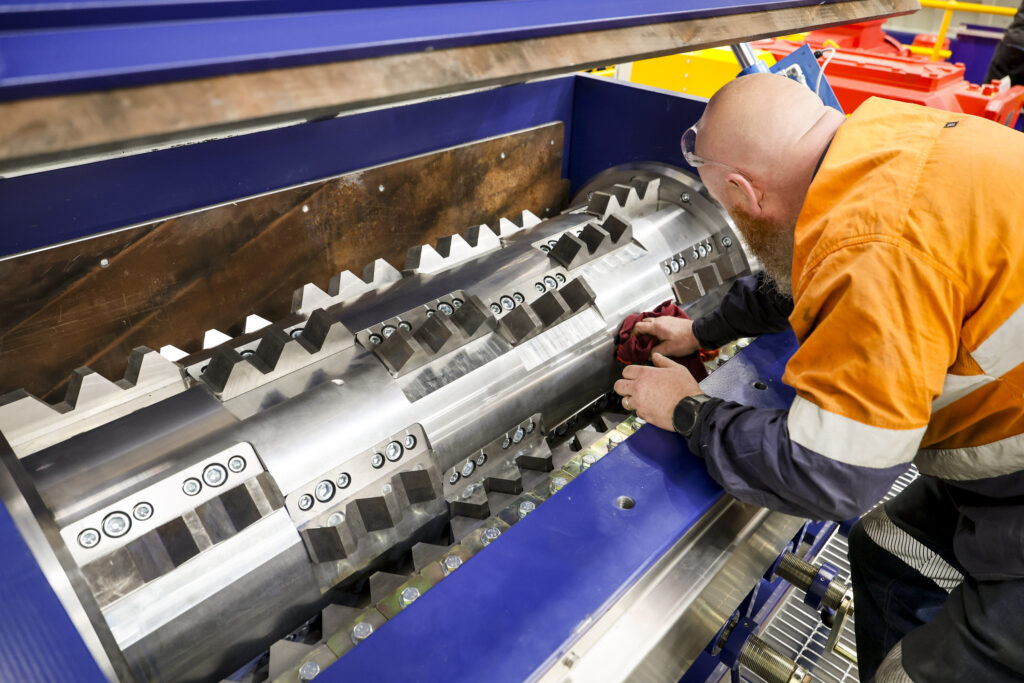

A technician in hi-vis cleaning the knife rotor of an Eilbeck rasper, its lid raised

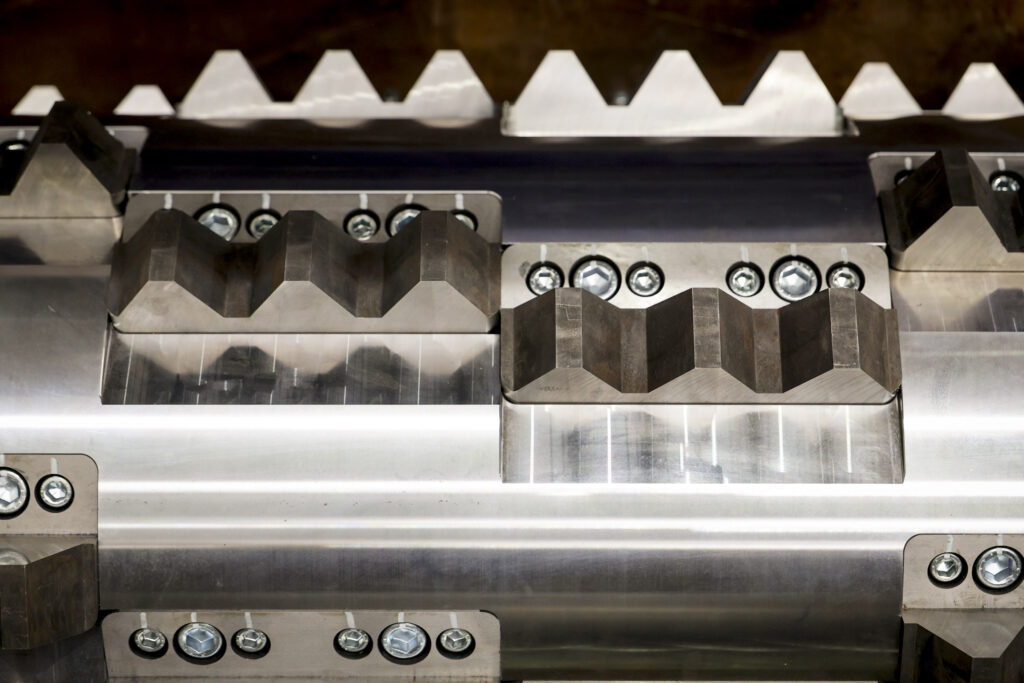

Close-up of a rasper rotor, its bolted V-shaped knives set in staggered rows below a row of counter knives

A blue shredder with a red drive and a yellow walkway on the workshop floor

Key Product Features

Standard features:

Variable speed drive control: Adjust shaft speed to suit the material and get the most from every load.
Fluid coupling protection: Absorbs shock loads to protect the drive.
Hydraulic top shell lift: Fast, safe access to the cutting chamber.
Couplings for easy rotor removal: The rotors come out quickly without stripping down the drive.
Hydraulic screen drop: Quick screen changes and cleaning.

Optional extras:

Access platforms
Water spray hopper: Keeps dust down.
Water-cooled rotor: Controls heat in the cutting chamber.
Water-cooled housing: Controls heat in the cutting chamber.
Air system inlet: Draws air through the cutting chamber to cool it and remove dust.

Specifications

SPECIFICATION	R300	R400	R600
Hopper Opening	760 × 500 mm	1000 × 500 mm	1500 × 500 mm
Rotor Length	760 mm	1000 mm	1500 mm
Rotor Diameter	660 mm	660 mm	660 mm
Rotor Speed	85-150 rpm	85-150 rpm	85-150 rpm
Main Rotor Knives	18	24	36
Main Counter Knives	16	22	34
Screen Size	10-50 mm (customisable)	10-50 mm (customisable)	10-50 mm (customisable)
Main Drive Power	150-220 kW	220-355 kW	300-400 kW
Service Motor	5.5 kW	7.5 kW	7.5 kW
Hydraulic System	5.5 kW	7.5 kW	7.5 kW
Best suited for	Small to medium tyre recycling and rubber reduction lines	Medium throughput recycling operations	High-throughput tyre and waste processing facilities

Enquire about our Raspers

Talk to our team about your material, volumes and site conditions, and we’ll help you find the right fit.
